Fine Powder
Fine Powder
High Purity and Fineness and Wide Variety
Achieving extremely high purity and excellent high crystallinity through thorough material research A world-class high-performance material with a stable supply ensured by an integrated production system
- High-purity artificial graphite powder
- High thermal conductivity / High electrical conductivity / High sliding performance (high lubrication) / High dispersibility
- Ultra-high purity 5N (99.999%), the most advanced in the industry
Fine Powder
Artificial graphite powder “Fine Powder” with high purity and excellent crystallinity
Fine powder with high purity and high functionality, created through unique technology
As a product developed independently by SEC Carbon, Fine powder serves as a replacement for various graphite powders that previously faced challenges in achieving uniform quality, high purity, and stable supply.
As a high-performance material achieved through the application of crushing and classification technology as well as research and development, it is used in components for automobiles, home appliances, and batteries. Additionally, it has been adopted in related markets of cutting-edge fields, including EVs.
SEC Carbon will continue to respond to future technological developments and diversified needs in a wide range of fields with high-purity, high-performance Fine powders.
Industries of Application
- Automotive Industry
- Aerospace Industry
- Railway Industry
- Construction Industry
- Power and Energy Industry
- Marine and Shipbuilding Industry
- Renewable Energy Industry
- Consumer Electronics Industry
- Precision Machinery Sector
- Research and Development Sector
Our Advantage
Strength
Reliable and Stable Supply
Made in Japan
The Pioneer of Graphite Powder
Since1986
Business Record
Over 800companies
Wide Variety of Lineup
Over 30 Types
Product Features
Features
Improved Functionality Through Excellent Compatibility with Metals and Resins
Artificial graphite powder exhibits properties that cannot be achieved with natural graphite powder.
It has excellent compatibility with metals and resins, and is used as a functional material, such as in carbon brushes.
Artificial graphite powder has the same electrical conductivity as natural graphite powder and is moderately harder than natural graphite powder, which reduces the speed of wear.
Excellent Chemical Resistance and Heat Resistance.
Artificial graphite powder is highly resistant to corrosion, performs exceptionally well in any environment or temperature, and also possesses excellent thermal conductivity.
It can also be combined with various materials to enhance their properties.
Wide Range of Particle Sizes (Micron Levels from 3 to 100)
Fine powder, with extremely high purity and excellent high crystallinity, is available in a wide range of series and sizes, with average particle diameters ranging from 3μm to 100μm, to meet the needs of customers‘ applications. Some products in the lineup boast an ultra-high purity of 99.999% (5N). As time progresses, it plays an active role in a wide range of fields, including paint, sliding materials, electrical applications, and batteries.
Product Lineup
Lineup

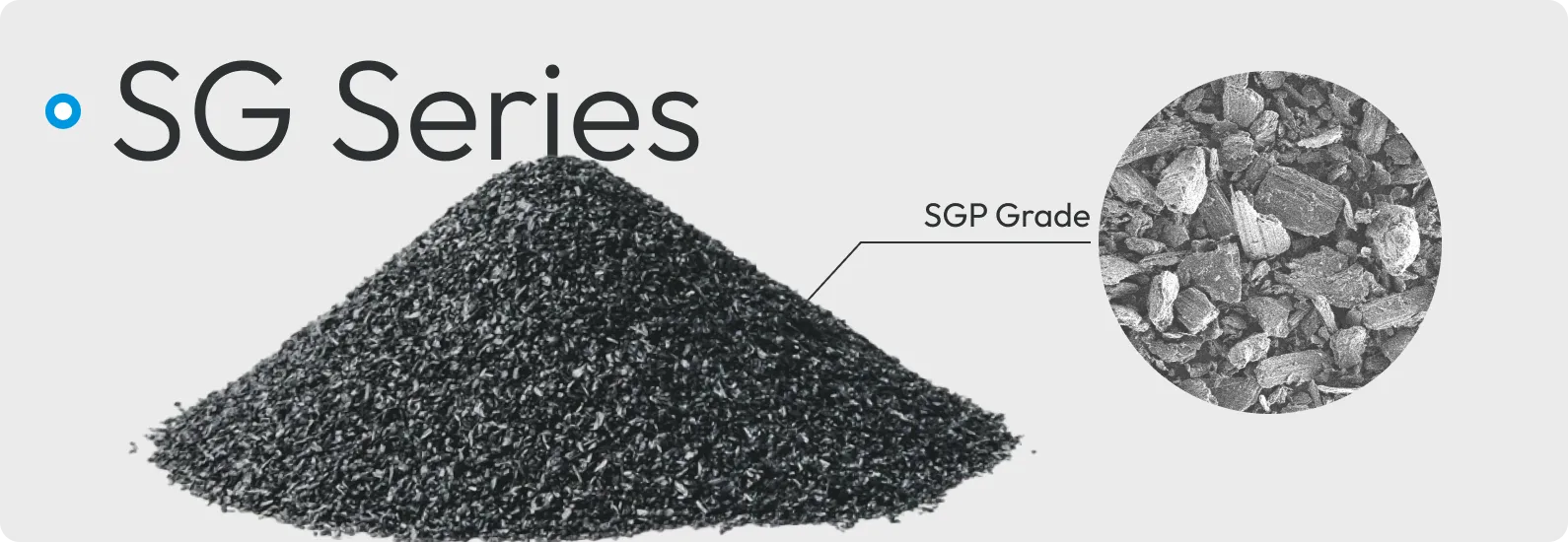

High-Purity Artificial Graphite Powder (SG Series)
Artificial graphite powder with stable quality by utilizing original graphitizing technology. In addition to purities ranging from high-purity 99.9% to ultra-high 99.999% (5N), we offer a wide range of particle sizes.
SGP
Artificial graphite powder with excellent electrical conductivity and lubricity
SGL
Artificial graphite powder made from highly wear-resistant raw materials and subjected to advanced graphitization.
SGO
Artificial graphite powder with high orientation and high purity, similar to natural graphite.
SGX
Ultra-high-purity artificial graphite powder with ash content of 10 ppm or less, refined through high-purification processing technology.
(Technical) Specification
| Grade | Shape | Ash Content (%) | Purity (%) | Real density (g/cm³) |
|---|---|---|---|---|
| SGP | Needle | 0.03 | 99.97 | 2.24 |
| SGL | Lump | 0.25 | 99.95 | 2.20 |
| SGO | Needle | 0.02 | 99.98 | 2.25 |
| SGX | Needle | 10ppm | 99.999 | 2.25 |
Particle size
（μm）
| Grade | 3 | 4 | 5 | 6 | 10 | 12 | 15 | 20 | 25 | 30 | 33 | 35 | 50 | 60 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SGP | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
| SGL | ● | ● | ● | ● | ● | ● | |||||||||
| SGO | ● | ● | |||||||||||||
| SGX | ◯ | ◯ | ◯ | ◯ |
The particle sizes shown above are available as standard products. Other sizes can also be produced upon request.
Samples of SGX are not provided.SGX grade may not be available for immediate shipment.Please contact us for more information.
High-Purity Natural Graphite Powder (SN Series)
High-purity natural graphite powder made from natural graphite as a raw material, achieving high purity through proprietary graphitization technology.
SNO
Natural graphite powder with exceptionally advanced graphitization and high-purity processing
SNE
Natural graphite powder made from exfoliated expanded graphite, processed with advanced graphitization and high-purity treatment.
(Technical) Specification
| Grade | Shape | Ash Content (%) | Purity (%) | True Density (g/cm³) |
|---|---|---|---|---|
| SNO | Flake | 0.03 | 99.97 | 2.26 |
| SNE | Special flake | 0.03 | 99.97 | 2.26 |
Particle size
（μm）
| Grade | 5 | 6 | 10 | 15 | 20 | 30 | 60 | 100 |
|---|---|---|---|---|---|---|---|---|
| SNO | ● | ● | ● | |||||
| SNE | ● |
The particle sizes shown above are available as standard products. Other sizes can also be produced upon request.

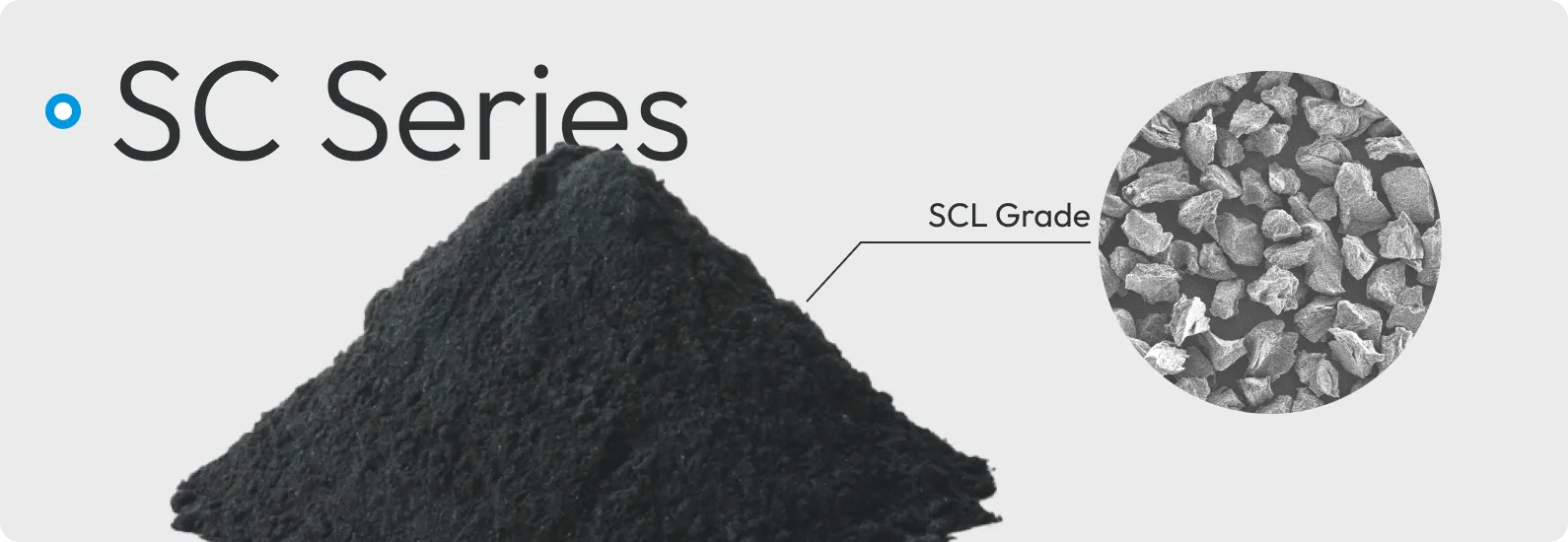

High-Quality Carbon Powder (SC Series)
High-quality carbon powder, finely and uniformly pulverized from carefully selected raw materials.
SCN
Carbon powder with excellent chemical reactivity, high purity, and superior dispersibility
SCL
Carbon powder with excellent wear resistance and sliding properties
(Technical) Specification
| Grade | Shape | Ash Content (%) | Purity (%) | True Density (g/cm³) |
|---|---|---|---|---|
| SCN | Needle | 0.05 | 99.95 | 2.14 |
| SCL | Block | 0.40 | 99.60 | 2.05 |
Particle size
（μm）
| Grade | 1 | 10 | 20 | 60 | 100 | 120 |
|---|---|---|---|---|---|---|
| SCN | ● | ● | ||||
| SCL | ● | ● | ● |
The particle sizes shown above are available as standard products. Other sizes can also be produced upon request.
(Technical) Specification
Comparison of Properties(at the Same Particle Size)

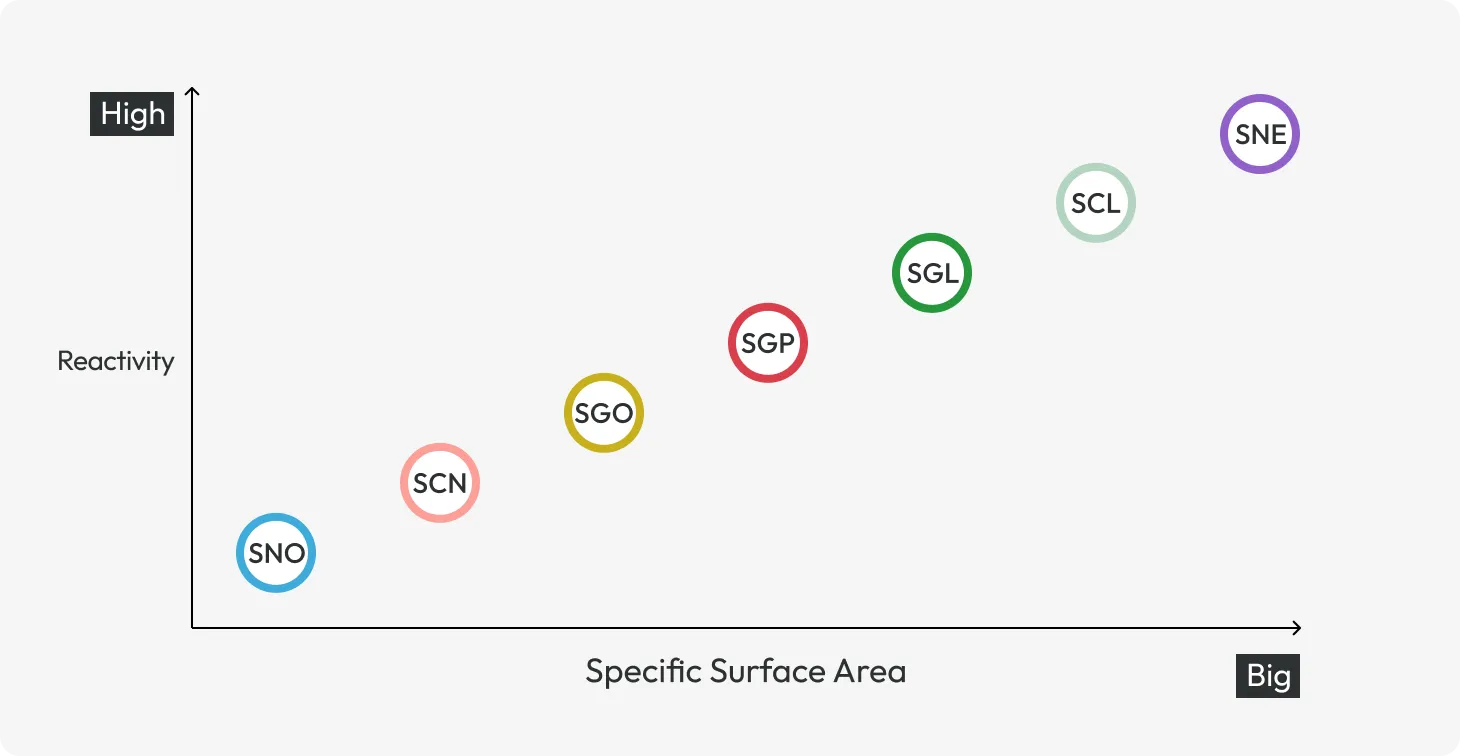

Specific Surface Area ・ Reactivity

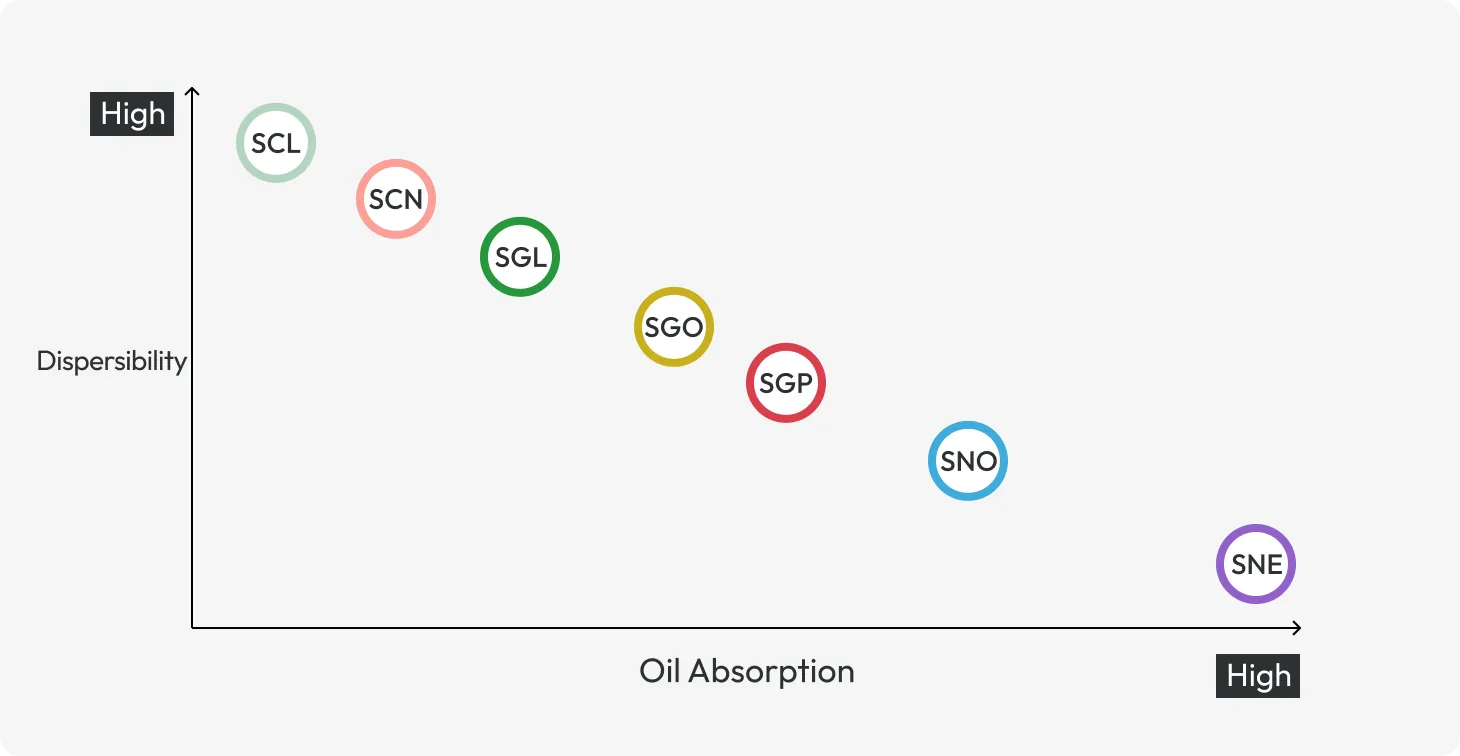

Oil Absorption ・ Dispersibility

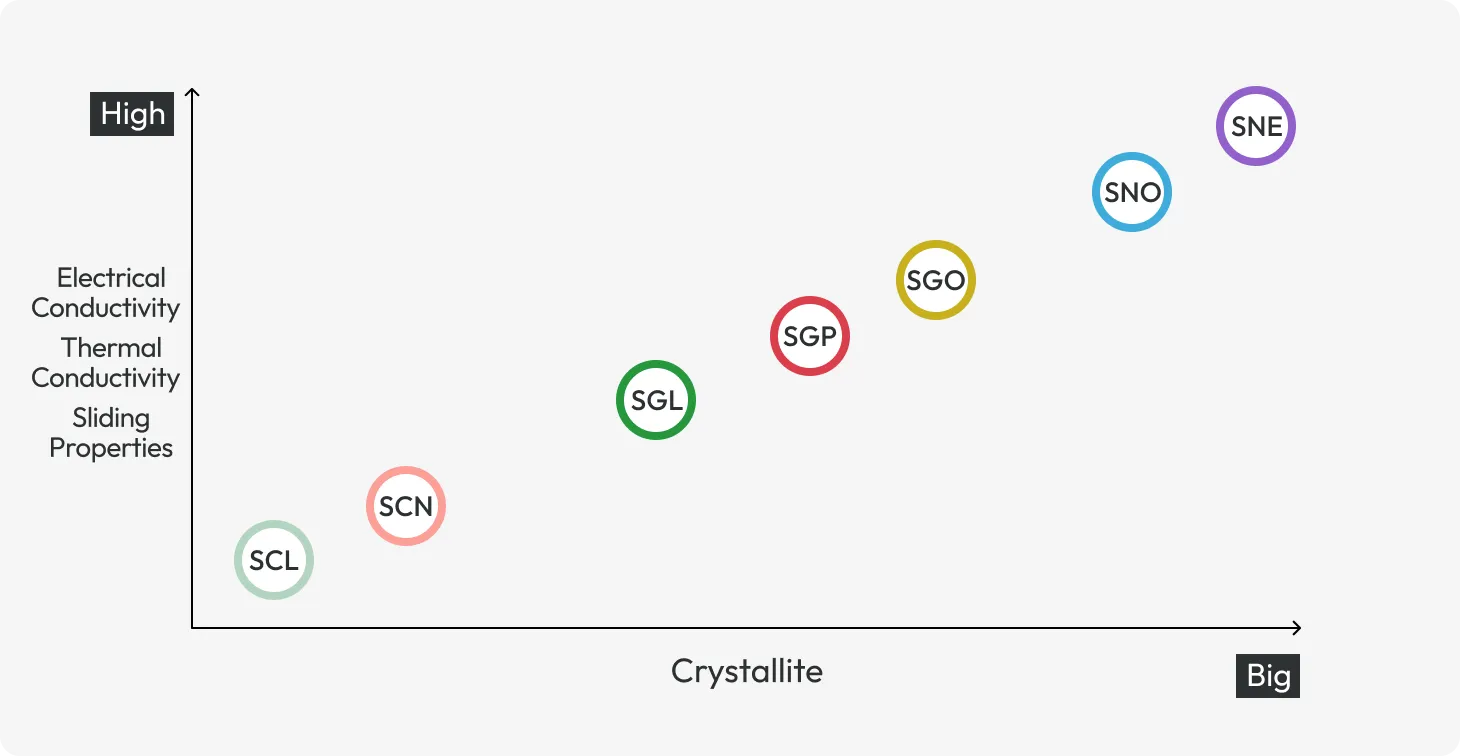

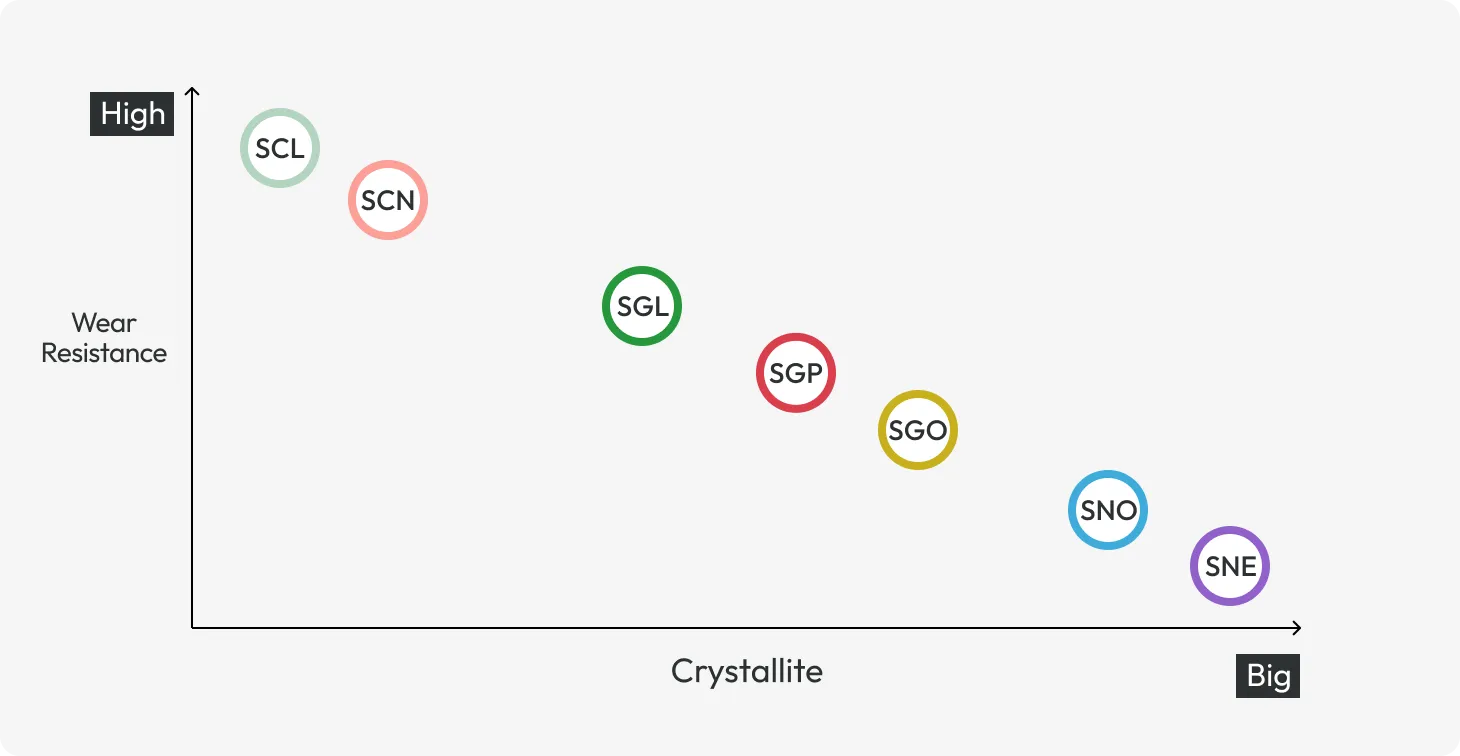

Crystallite(Method of JSPS※)※Japan Society for the Promotion of Science

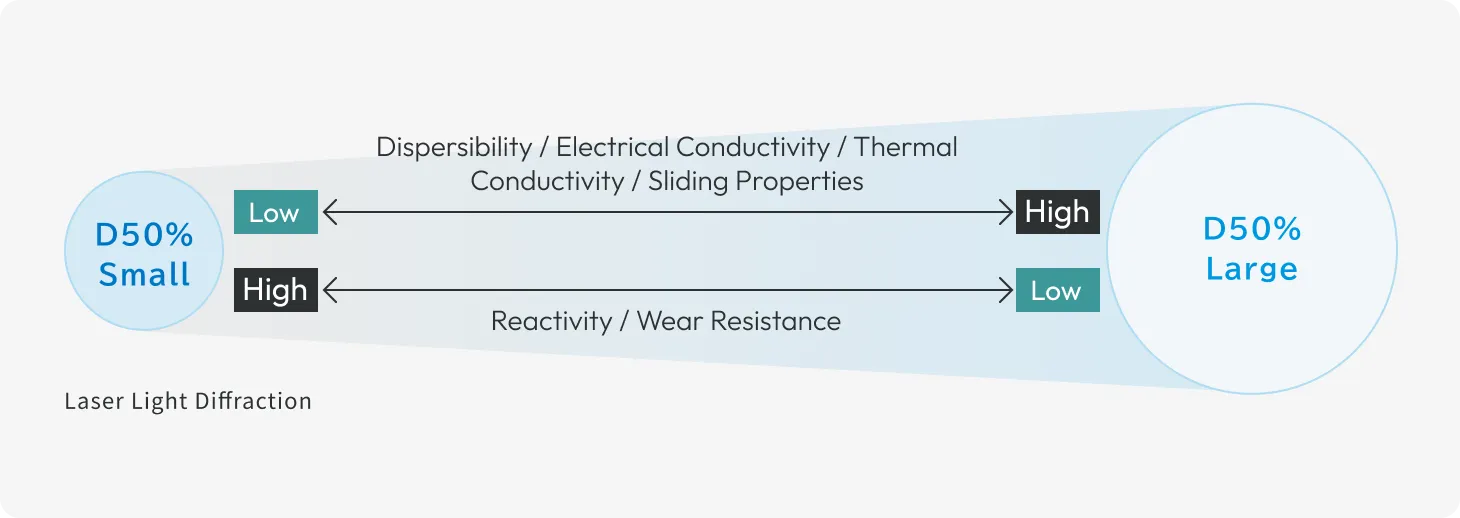

The Effect of Average Particle Size(D50%)
Application
Category
Graphite Powder for Sealing Materials (Fine Powder)
Graphite powder used in sealing materials prevents adhesion (seizure) and wear caused by temperature increases. Used in combination with ceramics (chromium oxide, SiC) and cemented carbides.
Related Keywords
Graphite Powder for Carbon Brushes (Fine Powder)
Graphite powder used in carbon brushes offers excellent wear resistance and can handle a large amount of current in high-speed rotating (moving) bodies. It also possesses material properties that withstand heat generation and oxidation.
Related Keywords
Graphite Powder for Brake Materials (Fine Powder)
Brake materials in which graphite powder is used have good sliding properties and excellent heat dissipation. Graphite powder is blended in various additives, mainly metal powder and synthetic resins.
Related Keywords
Graphite Powder for Various Paints (Fine Powder)
Paints containing graphite powder are used in applications requiring conductivity.Mixing graphite powder with resins and paints can add antistatic and antifouling effects.
Related Keywords
Other Keywords
Batteries
Semiconductor
Resin
Wear Resistance Additive
Coating
Others
